Installation Steps - H Series
New Insulator Covers
The EVTA-1B-NP is designed for ViceTop insulators, Hendrix, PLP, Victor. The arms are one piece, part #1B, no tab. See EVTA-1T for snap fit tabbed arms. Installs in one piece, insulator cover and arms. Then install the snap fit pins. For a 3 piece installation see EVTA-HSW series. The EVTA-HSW series also accepts downstrains.
New Cutout Covers
The ECC-10U series are a universal cutout cover design for S&C SMD 20 cutouts, porcelain and polymer. The ECC-10U does not have the capability to add an extension to the front for added coverage. See ECC-10UC for the capability to add an extension to the front. For FR rated material the part number would be ECC-10U-FR.

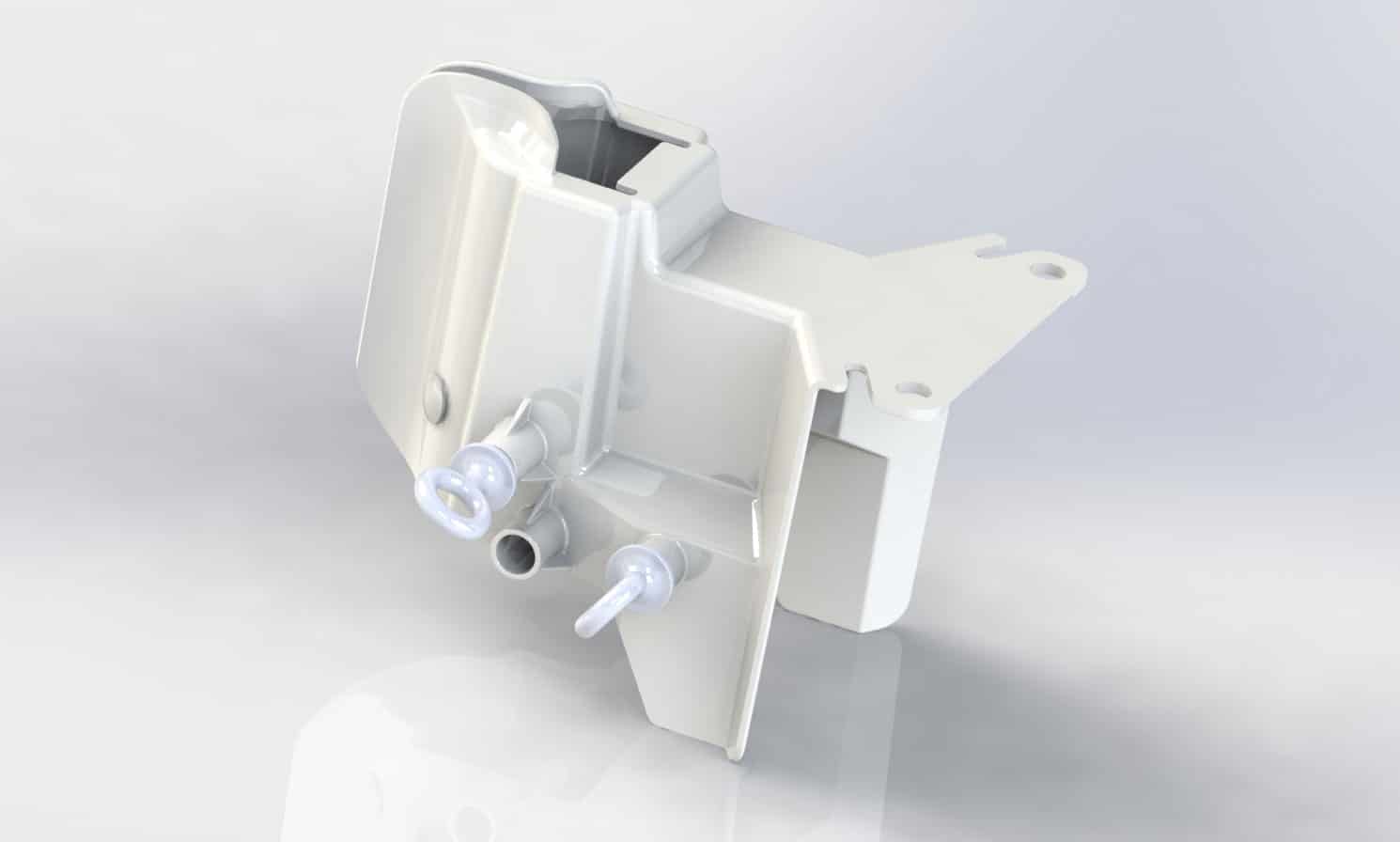

The ECC-UH series are a universal cutout cover that fits porcelain and polymer type XS cutouts, 110, 125 and 150 BIL cutouts. The front of the cover is taller than the ECC-UM series and an extension cannot be added. To add the extension to the front for added coverage see ECC-UHC. For porcelain cutouts install the pins one high and one low, as shown. For polymer cutouts install both pins in the lower two holes.

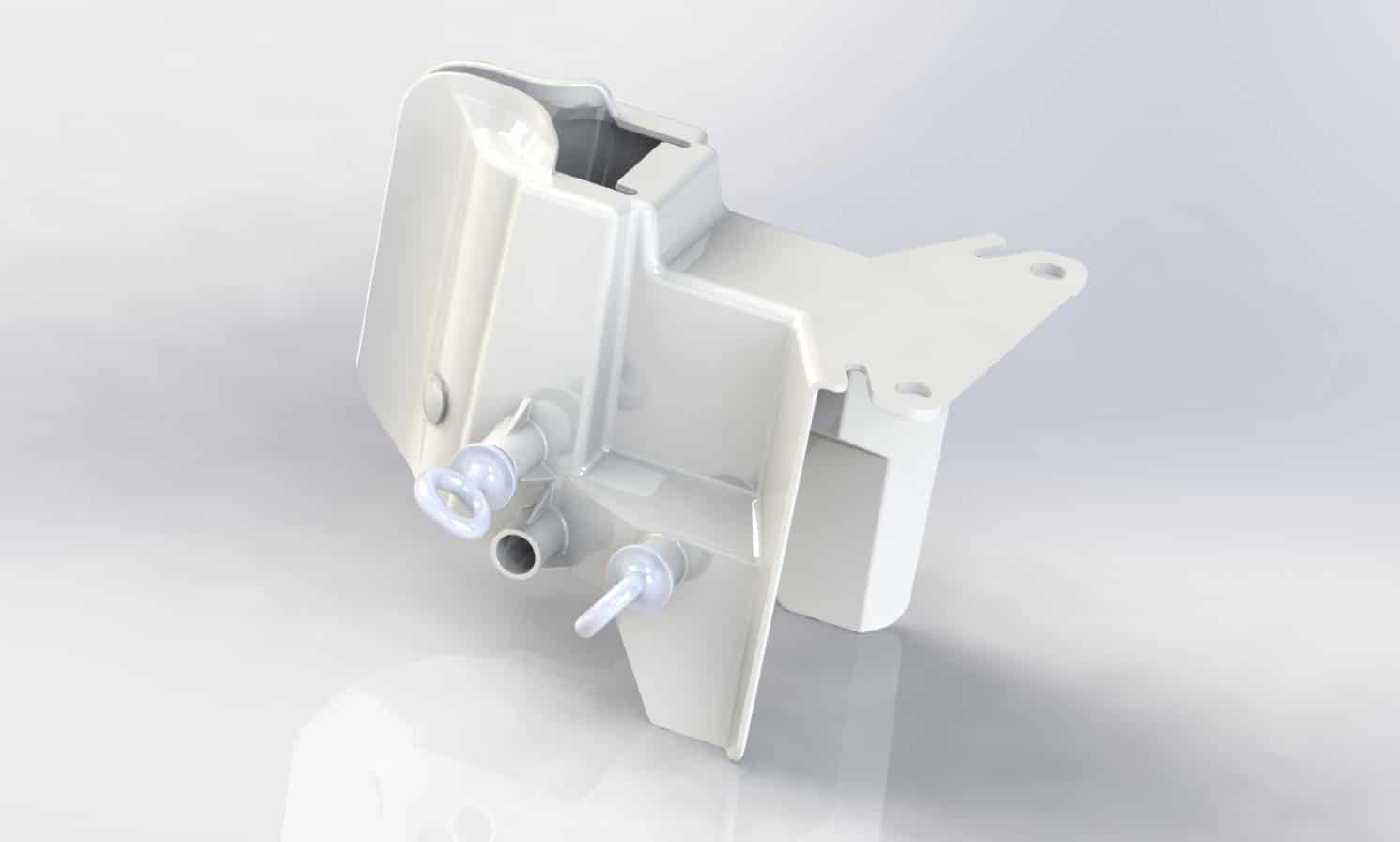

Designed for the S&C SMD 20 cutouts, porcelain and polymer. No cruciforms for adding the extension to the front for added coverage. Available in FR rated material. UL 94 5VA rated. For FR material add FR, Part # ECC-10U-FR. For porcelain insert the pins high and low as shown. For polymer insert pins in the lower two holes.
